Fiber Optic Spark Plug for SI- Engine Investigation
FOSP Fiber Optic Spark Plug for
FOS Fiber Optic System
Spark plug with integrated fiber-optics for optical combustion analysis in spark-ignition engines. Customers mass production spark plug will be equiped with fiber optics.
- Up to 16 optical windows to the combustion chamber
(more possible, depending on the spark plug dimensions) - Thread sizes M8, M10, M12, M14
- Different optics available
- Viewing direction α: 0° axial @ 7° opening cone
- Viewing direction α: 20°, 40°, 50°, 60°, 70° or 80°, radial @ 25° opening cone
- Transmission from UV to NIR

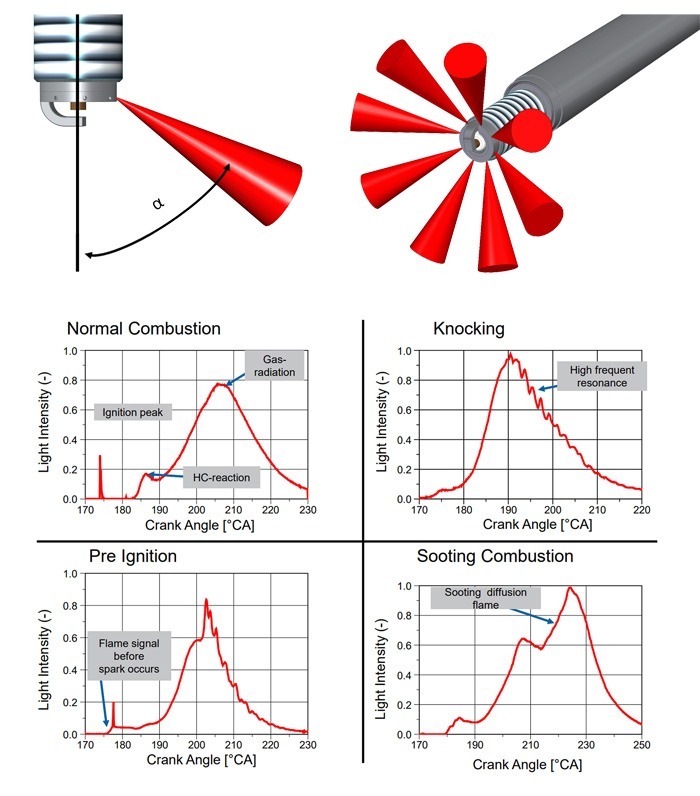

The fiber optic spark plug detects light intensity signals from combustion. As shown in the diagrams. The light intensity of a single viewing sector in the radial direction, in four different applications.
